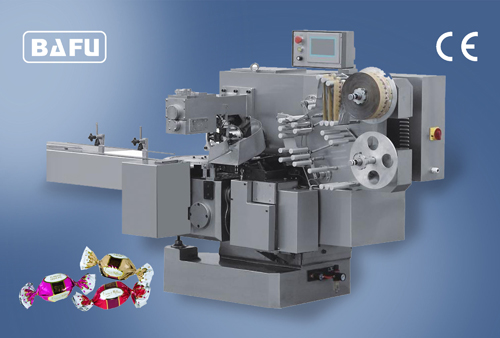

DWC300 Double Twist Chocolate Packaging Machine
DWC300 Double Twist Chocolate Packaging Machine is designed for high speed packing chocolate & candy into double twist style. Chocolate or candy which are unfit for automating arrangement were feed by conveyor belt, then to be auto pushed into feeding plate by mechanical. Film length change by PLC. Machine of modern design, easy to clean and easy for maintenance. The customized machine also be connected to bowl feeder or aligner feeder according to different products.
Function
● Chocolate or candy which are unfit for automating arrangement were feed by
conveyor belt,then to be auto pushed into feeding plate by mechanical;
● Photoelectric tracking, Touch screen and PLC control;
Standard Specifications
|
Packing Speed
|
up to 300 Packs/Min
|
|
Product Size (mm)
|
25-40(L) x 15-20(W)
|
|
Voltage
|
380V, 3P
|
|
Total Power
|
3.0KW
|
|
Dimension (mm）
|
2,030 x 1,250 x 1,810
|
|
Machine Weight
|
1,200kg
|
|
Wrapping Material
|
Cellophane, PVC, PP, Waxed paper, complex material etc
|
