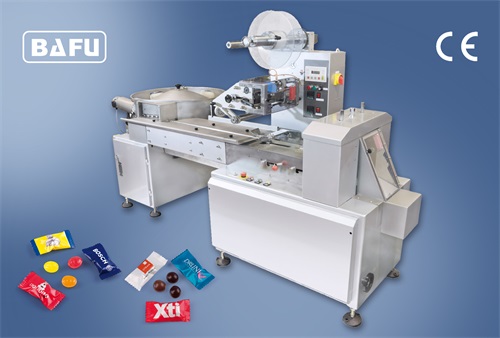

FWM800 Candy Packaging Machine
FWM800 Candy Packaging Machine is applicable to wrapping all kinds of hard candies as well as other regular shape, such as chewing gum, bubble gum and chocolate ball etc. The machine is fully automatic and is complete with a vibratory feeding system & multi brush plate feed system. Print registration unit, wrapping counter & pack length change by keypad are all standard items. The maximum speed is up to 800 wraps per minute. The machine can be manufactured to give various length modes, the maximum width is 60 and the maximum height is 45mm.
Function
● The intelligent system is composed by servo motors, servo driver and touch screen;
● Suitable for all kinds of hard candy & ball chocolate, including rectangle, square, oval,
round and so on. No need to change any spare parts, just candy feeding plate only;
● It adopts positive & negative supper big feeding plate to arranging candy;
● Bafu‘s sealing technology for superior seal integrity and package quality;
● Electric controller adopts famous brand, such as Photocell - Sick (Germany), Sensor -
Omron(Japan), Contactor - Schneider(France), Inverter - Delta(Taiwan, China), Bearing -
SKF(Sweden) and so on;
● Stainless steel version can be customized;
Specifications
|
Packing Speed
|
up to 800 Packs/Min
|
|
Size (mm)
|
42-80mm
|
|
Voltage
|
220V, 50Hz
|
|
Total Power
|
3.5KW
|
|
Dimension (mm）
|
2,700 x 1,350 x 1,450
|
|
Machine Weight
|
800kg
|
|
Wrapping Material
|
CPP/PET+CPP/BOPP
|
