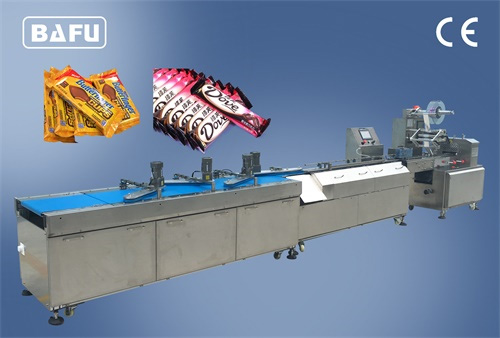

FWC350A Automatic Packaging Line is for the automatic feeding and wrapping of small and medium sized products. The machine will automatically arrange products into a single file before automatically feeding them into the wrapping section. The machine will wrap at 300-400 wraps per minute and will speed up and slow down to the speed of the production machines feeding it.
This is a fully automatic machine with print registration and date printer, auto reject device for misplaced chocolates. Machine can be supplied different configurations of cutting jaws for different sized products. The machine wraps in the flow-pack style.

Function
●  Servo intelligent drive control, low noise and smooth operation, the production
    environment more comfortable;
●  Fully automation,the entire process(feeding, forming, filling, sealing) is automatic;
●  User-friendly design, the use of industrial touch screen, man-machine interactive
    operation, parameter display and intuitive menu operation, easier to use;
●  Connection production lines, fully automatic sorting and automatic packaging from
    the products to finished goods, the whole process are automatic, greatly improving
    production efficiency;
●  Unique design, frequency control, photoelectric automatic tracking color;
●  Durable precision cutting tools, ultra-precision process horizontal sealing, vertical sealing;

Standard Specifications

Packing Speed	up to 400 Packs/Min
Packing Length	70-360mm
Product Height	70mm
Voltage	220V, 50Hz
Total Power	4.3KW
Dimension (mm）	6,100 x 950 x 1,500
Machine Weight	1,000kg
Wrapping Material	CPP/PET+CPP/BOPP
