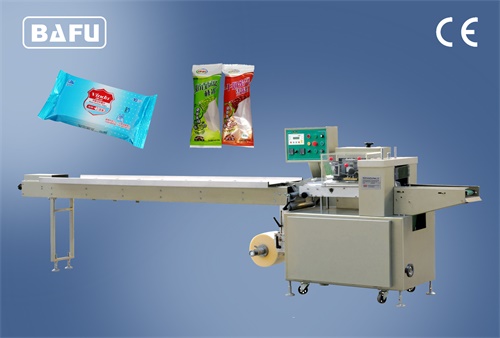

FWL350 Inverted Flow Wrapper is applicable to packaging the loose, irregular, stick type products, such as vegetables, steamed dumpling, ice-bar, meat, hardware, food, bakery, confectionery, dairy, fresh produce, egg roll, sausage, squid, bread, moon-cake, instant noodles, preserved fruit, jelly candy, toilet soap, pocket notebook, box pen, sticky tape, pharmaceutical, and so on. The machine‘s inverted film path gently transports the product directly onto the film from the former through the cutting head, greatly reducing jams and ensuring superior package appearance.

Function
●  The intelligent system is composed by servo motors, servo driver and touch screen.
●  Computer Controller System, the photoelectric detection and bi-directional tracking, which
    can eliminate the error of packing and reduce the waste of packing film and raw materials.
●  Adopt bottom feeding film to packaging, the machine body can be cleaned by water.
●  Intelligent Temperature System, Intuitive display, easy for setting, accurate temperature.
●  High-speed, high efficiency, stable operation, low breakdown, easy maintenance etc.
●  Electric controller adopts famous brand, such as Photocell-Sick(Germany), Sensor-
    Omron(Japan), Contactor-Schneider(France), Inverter-Delta(Taiwan,China), Bearing-
    SKF(Sweden) and so on.
●  Date printer, automatic punching device, falling device, nitrogen filling device, stainless steel
    version can be customized.

Standard Specifications

Packing Speed	25-280 Packs/Min
Packing Length	70-360mm
Film Width	up to 360mm
Product Height	65mm
Voltage	220V, 50Hz
Total Power	2.5KW
Dimension (mm）	3,900 x 920 x 1,300
Machine Weight	600kg
Wrapping Material	CPP/PET+CPP/BOPP
